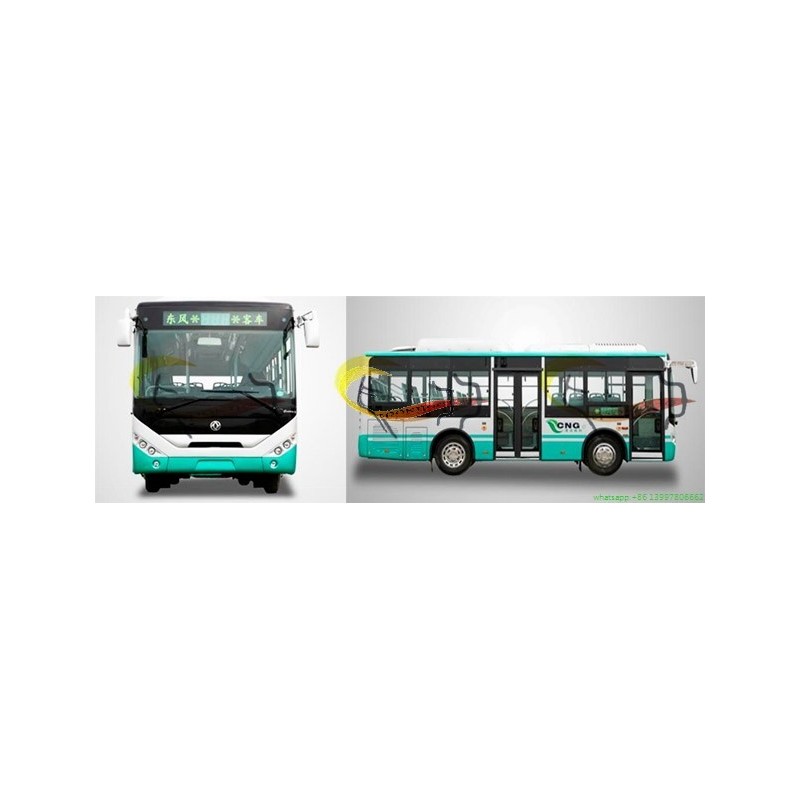

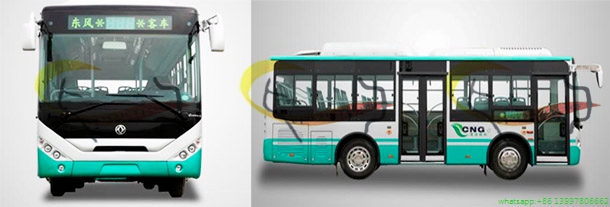

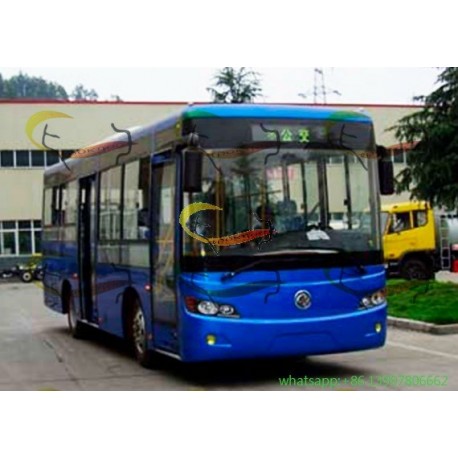

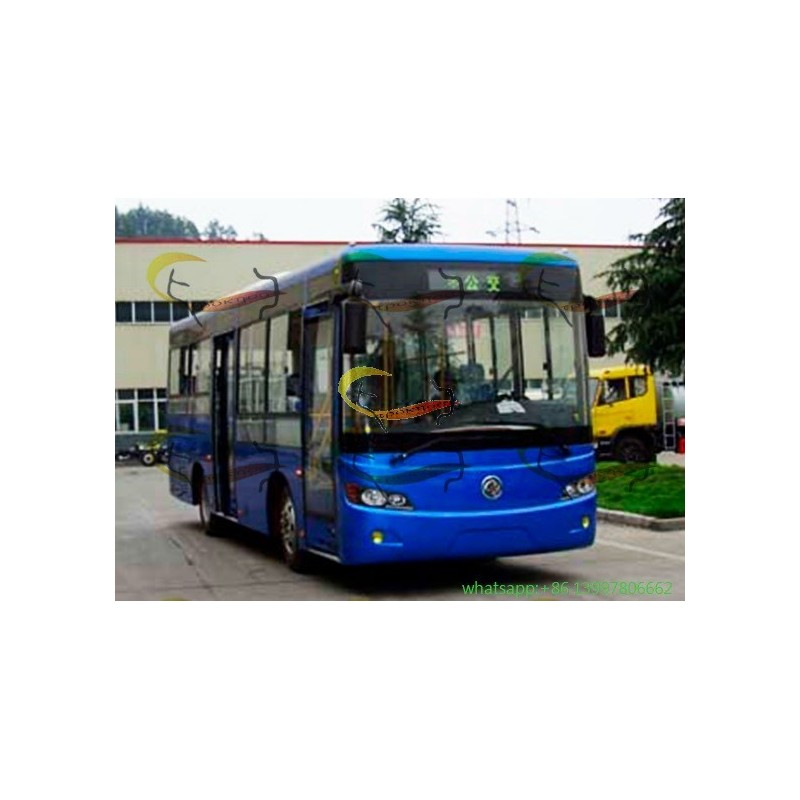

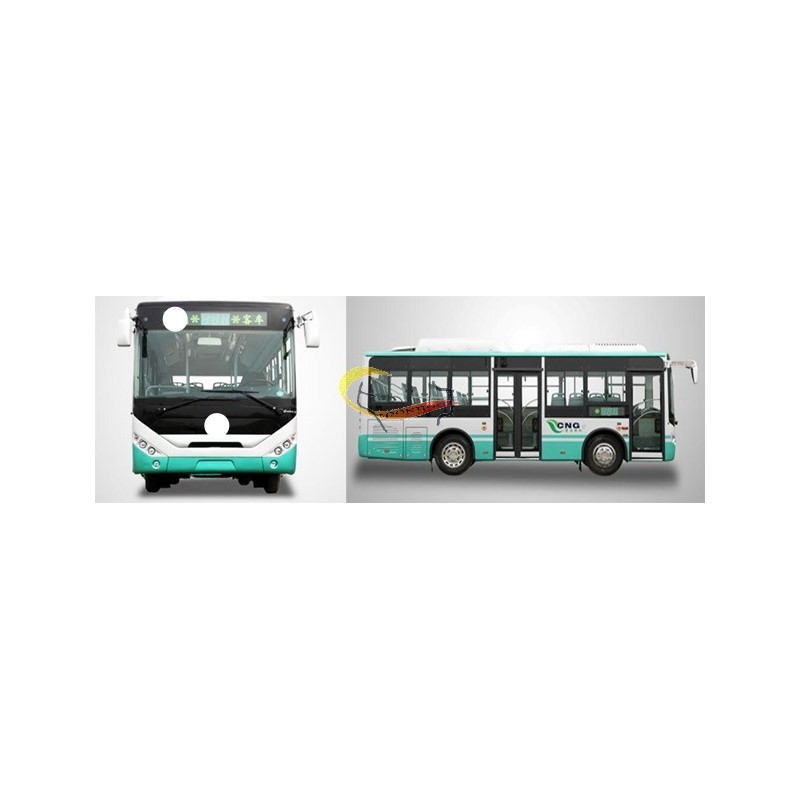

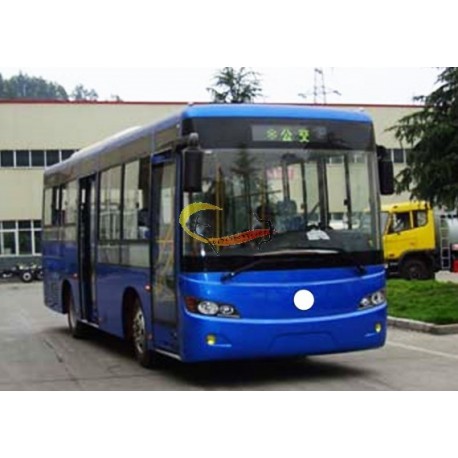

city bus EQ6770CHT
EQ6770CHT
New product
2 Items
Warning: Last items in stock!
More info
|
EQ6770CHT City Bus |
|||||
|
Finished Vehicle |
Vehicle Model |
EQ6770CHT City Bus |
|||
|
L*W*H(mm) |
7740*2340*3010 |
||||
|
Body Internal Height |
2170 |
||||
|
Wheelbase |
3650 |
||||
|
Maximum Gross Vehicle Weight |
9800 |
||||
|
Rated Passengers Number |
48/20 seats (10-29 seats For optional) |
||||
|
Maximum Speed |
85 |
||||
|
Engine |
Engine Model |
YC4D140-20/Guangxi Yuchai |
|||
|
Engine Power |
103 |
||||
|
Maximum Torque |
450 |
||||
|
Position/Fuel Type |
Rear Engine/Diesel |
||||
|
Engine Type |
Four Cylinders,supercharge intercooling |
||||
|
Chassis |
Chassis Model |
EQ6750H3AC |
|||
|
Transmission Gear |
Manual Operation 5 speed |
||||
|
Clutch |
Single Plate,Dry type,diaphragm,hydraulic operation,power assistant |
||||
|
Carry Capacity(Front/Rear Axle) |
3.5T/7T |
||||
|
Suspension |
Steel plate spring,Front 3 Rear 4, Dongfeng ZF shock absorber |
||||
|
Steering System |
Power-assisted Steering |
||||
|
Brake |
Two circuit air pressure braking,Parking braking |
||||
|
Fuel Tank |
90L |
||||
|
Tires |
7.50-20 |
||||
|
Others |
Atmospheric drier |
||||
|
Automobile Body Assy. |
Automobile body Structure |
Semi-integral body |
|||
|
Side Door |
Front Single, Middle Double,Pneumatic ,Internal swing passenger's door |
||||
|
Side Windows |
Up and down sealed up,middle part aluminium alloy push-and-pull side window |
||||
|
Air-conditioning System |
Top-mounted Single system |
||||
|
Audiovisual System |
radio and tape player |
||||
|
Lamps |
Brand new front and rear round lamps combination |
||||
|
Remarks: |
Retrofitting aluminium alloy floor and air-conditioning system |
||||
|
EQ6890PTN3 City Bus |
|||||
|
Finished Vehicle |
Vehicle Model |
EQ6890PTN3 City Bus |
|||
|
L*W*H(mm) |
8910*2480*3100,3430 |
||||
|
Wheelbase |
4000 |
||||
|
Maximum Gross Vehicle Weight |
12000 |
||||
|
Rated Passengers Number |
61/10seats |
||||
|
Maximum Speed |
85 |
||||
|
Engine |
Engine Model |
EQ6100N-3 ( dual fuel ) of Dongfeng commercial vehicle company engine plant |
|||
|
kw Engine Power |
95 |
||||
|
Chassis |
Chassis Model |
EQ6820HN3AC1 |
|||
|
Transmission Gear |
Dongfeng 5gearbox |
||||
|
Clutch |
with the clutch power |
||||
|
Steering System |
Power-assisted Steering |
||||
|
Brake |
Two circuit air pressure braking,Parking braking |
||||
|
Tires |
8.20-20 |
||||
|
Automobile Body Assy. |
Automobile body Structure |
Semi-integral body |
|||
|
Air-conditioning System |
Installation of air conditioning is optional |
||||
|
Audiovisual System |
City Bus no film system, no MP4 |
||||
