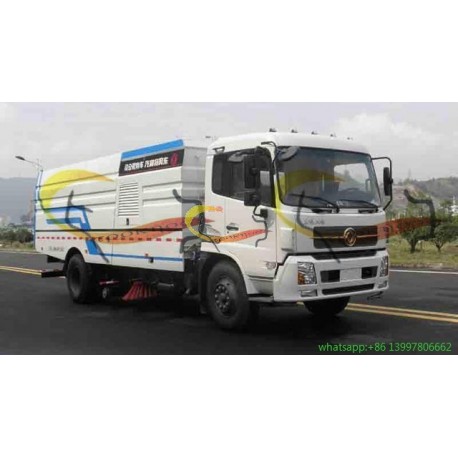

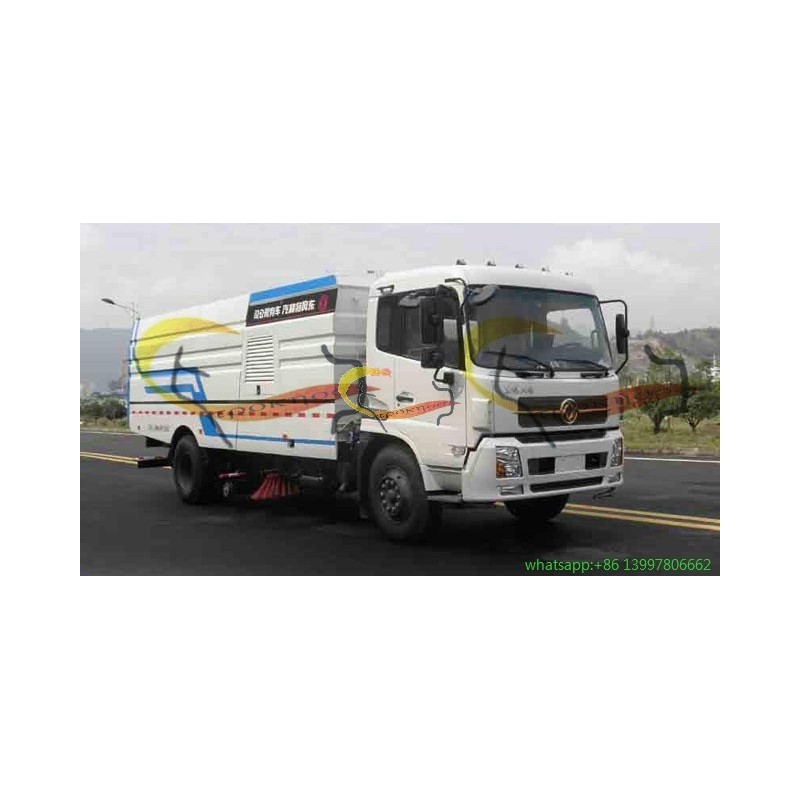

washing and sweeping vehicle Eq5160txst
EQ5160TXST
New product
Model: eq5160txst
Chassis: dfl1160bx5
2 Items
Warning: Last items in stock!
More info
Product Description:
Dongfeng Teqi eq5160txst washing and sweeping vehicle is refitted from the chassis of Dongfeng Tianjin dfl1160bx5 national class IV class II vehicle, equipped with auxiliary engine, fan, high-pressure water pump, clean water tank, dustbin, left and right vertical sweeping, wide suction nozzle with water spray rod, low-pressure washing system, sweeping disc dust reduction system, hydraulic pressure system, special device electric control system and subframe. It has many functions such as road cleaning, road cleaning, road edge cleaning, road edge and curb stone facade washing, low pressure washing, spray and dustfall. The cleaning rate of pavement is more than 90%. This product is suitable for cleaning operations such as mechanization cleaning, cleaning, spray and dust suppression for city roads, highways, squares, airports, wharves, tunnels, bridges, isolated walls, road edges and curb facades.
Function introduction:
The sweeper has many functions, such as road cleaning, road cleaning, road edge cleaning, road edge and curb stone facade washing, low pressure washing, spray and dustfall. There are six operation modes to choose from: "full washing and sweeping", "left washing and sweeping", "right washing and sweeping", "full sweeping", "left sweeping" and "right sweeping". Choose the "full cleaning and sweeping" mode to clean the square and pavement, with high cleaning efficiency and good effect, and the cleaning rate is more than 90%. Select "left washing and sweeping" or "right washing and sweeping" mode to clean the pavement and curb and wash the elevation of curb. When road cleaning or road cleaning is required, the sweeping mode can be selected. When spraying dust is needed, the spray and dust suppression operation can be started. The road surface can be flushed under low pressure like a sprinkler.
Model Eq5160txst washing and sweeping vehicle
Overall dimension (mm) nine thousand × two thousand four hundred and seventy × 3030,2970
Maximum sweeping capacity 7000m ²/ h
Sweeping width 3.5m
Wheelbase (mm) five thousand
Total mass (kg) sixteen thousand
Rated load mass (kg) four thousand one hundred and fifty-five
Curb weight (kg) eleven thousand six hundred and fifty
Engine model
ISDe210 40
ISDe180 40
ISDe185 40
EQH180-40
ISB180 40
Displacement / power
6700/155
4500/132
6700/136
4752/132
5900/132
Chassis Model DFL1160BX5
Vehicle category: Special vehicle
Vehicle model: EQ5160TXST
Inspection exemption: no
Fuel: no
Exemption: yes
Environmental protection: no
Announcement batch: q4(264) Catalog serial number: three
Chinese brand: Dongfeng brand Manufacturer: Dongfeng Special Automobile Co., Ltd
Engine model: ISDe210 40 Engine power: one hundred and fifty-five
ISDe180 40 one hundred and thirty-two
ISDe185 40 one hundred and thirty-six
EQH180-40 one hundred and thirty-two
ISB180 40 one hundred and thirty-two
ISB210 40 one hundred and fifty-five
Engine displacement: six thousand seven hundred Engine manufacturer: Dongfeng Cummins Engine Co., Ltd
four thousand and five hundred Dongfeng Cummins Engine Co., Ltd
six thousand seven hundred Dongfeng Cummins Engine Co., Ltd
four thousand seven hundred and fifty-two Dongfeng Commercial Vehicle Co., Ltd
five thousand and nine hundred Dongfeng Cummins Engine Co., Ltd
five thousand and nine hundred Dongfeng Cummins Engine Co., Ltd
Engine trademark: Fuel type: diesel oil
Overall dimension (L / w / h): nine thousand × two thousand four hundred and seventy × 3030,2970 Cargo compartment (L / w / h): ××
Total mass (kg): sixteen thousand Deadweight: 0
Curb weight (kg): eleven thousand six hundred and fifty Rated mass (kg): four thousand one hundred and fifty-five
Cab (person): Date of issue: twenty million one hundred and forty thousand nine hundred and seventeen
Approach angle / departure angle: 20/13 Front suspension / rear suspension: 1430/2570
Wheelbase (mm): five thousand Axle load: 6000/10000
four thousand and seven hundred
four thousand and five hundred
Number of axles: two Maximum speed (km / h): ninety
oil consumption: 29.5,29.5,29.5,29.5,29.5 Number of springs: 8/10+8,7/9+6,9/10+8
Number of tires: six Tire size: 10.00-20,10.00R20,9.00-20,9.00R20,275/80R22. 5 16PR
Front track: 18,801,920 Rear track: 18,601,800
Steering form: Steering wheel Front passenger (person): three
Chassis according to standard: Gb3847-2005, gb17691-2005 (National IV)
other: 1. The front face spoiler cover of the cab is optional with the chassis; 2. Only chassis 5000 wheelbase is adopted; 3. The rear protective section size is 140x80mm, the height from the ground is 550mm, Q235 material, bolted connection; The side protection is replaced by a special device. 4. Isde210 40, ISDe180 40, ISDe185 40, isb180 40 and eqh180-40 engines are selected, and the corresponding declared fuel consumption values are 29.5. 5. The ABS model is 4460046440; 3631010-c2000, manufactured by vebco automotive control system (China) Co., Ltd; Dongfeng Electronic Technology Co., Ltd. brake system company
For more pictures and prices of road sweepers, please contact our company!
