pure electric van type transport vehicle Eq5041xxytbev

project Technical parameter index

Vehicle shape Length * width * height: 5998 × two thousand and sixty × 2730mm

Total mass 4495kg

Rated load mass 450、515kg

wheelbase 3600mm

Maximum speed 90km/h

Range ≥ 250km (40km / h constant speed driving)

Battery type / battery capacity Ternary lithium battery / 100kW · H

Charging time Fast charge 2.5h charge 80%

characteristic 1. Pure electric power source; 2. Applicable to urban logistics transportation; 3. The cab is effectively isolated from the cargo hold, and the top of the carriage is sealed and cannot be opened.

project Technical parameter index

Vehicle shape Length * width * height: 4178 × one thousand six hundred and thirty × 1898mm

Total mass 2185kg

Rated load mass 505kg

wheelbase 2705mm

Maximum speed 85km/h

Battery type / battery capacity Ternary lithium battery / 44kw · H

Range ≥ 230km (working condition method)

Charging time Fast charge 1.5h charge 80%

characteristic 1. Pure electric power source; 2. Applicable to urban logistics transportation; 3. The cab is effectively isolated from the cargo compartment, the top of the compartment is closed and cannot be opened, and the side skirt structure is optional.

报错 笔记

project Technical parameter index

Vehicle shape 4490mm/4600mm × 1680mm × 2250mm

Interior dimensions one thousand nine hundred and sixty × one thousand five hundred and twenty × 1400mm

Total mass 3450kg

curb weight 2170kg/2290kg

Rated load mass 1150kg/1030kg

wheelbase 2850mm

Maximum speed 85 km/h

Range ≥ 150km (40km / h constant speed driving)

Chassis Model Eq1031gtevj pure electric truck chassis

purpose It adopts pure electric power, energy saving and environmental protection, and is suitable for urban logistics transportation

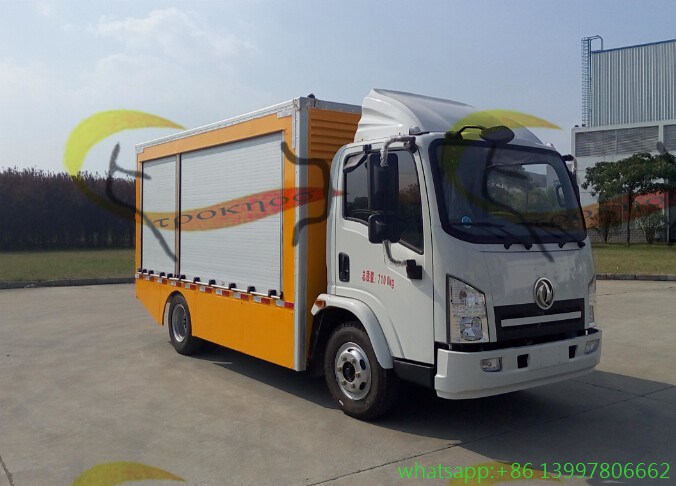

project Technical parameter index

Vehicle shape 5995mm × 2150mm × 2760mm

Interior dimensions 4100mm × 2020mm × 1770mm

Total mass 7100kg

curb weight 6905 kg

wheelbase 3300mm

Maximum speed 95 km/h

Range ≥ 150km (40km / h constant speed driving)

Chassis Model Eq1070gtevj3 pure electric truck chassis

purpose The vehicle adopts 32650-5ah split lithium iron phosphate, which carries a total of 300 kwh. It can meet the requirements of simultaneous charging of two electric vehicles and is suitable for emergency charging of urban electric vehicles.

project Technical parameter index

Vehicle shape 4580mm × 1615mm × 2110,2330mm

Interior dimensions 2600mm × 1550mm × 1340,1560mm

Total mass 2330kg

curb weight 1500 kg

Rated load mass 700 kg

wheelbase 2800mm

tyre 175/70R14LT 6PR

Maximum speed 80 km/h

Range ≥ 160km (40km / h constant speed driving)

Chassis Model Eq1020gtevj pure electric truck chassis

purpose Urban logistics transportation
